Travelling salesman problem (TSP)

The travelling salesman problem (TSP) concerns on finding the shortest possible route linking a given list of cities and their distances.

The TSP is one of the most famous problems in computer science and it belongs to the class of NP-Complete problems. The Travelling salesman problem have many important applications, from route planning to the manufacture of microchips. But, in essence, it can be formulated as to find the minimum path that links each node in a weighted graph.

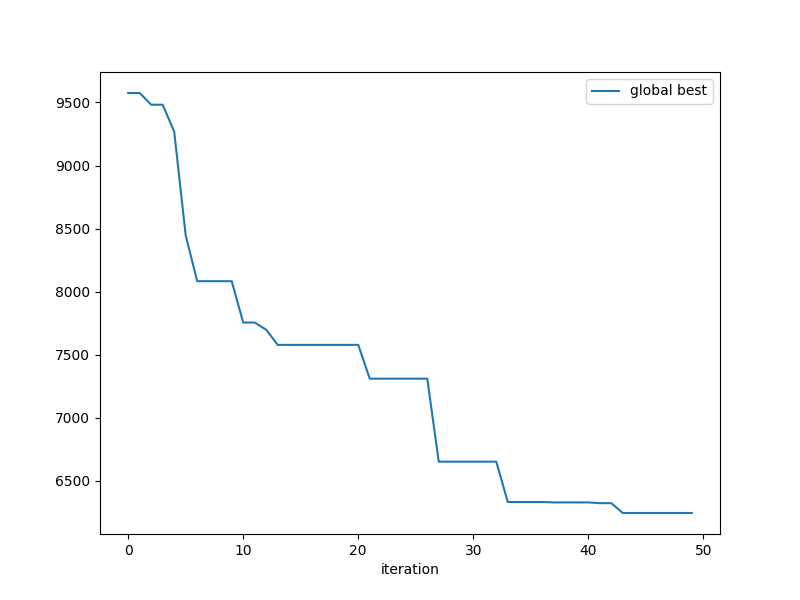

Using psopt.Permutation we can generate many instances that use different paths. Then, those paths that have yielded the best results guide the other particles on finding better results throughout iterations. Below we see the progress of the algorithm:

Out:

Iteration 0:
   global_best: 9575.000   iteration_best: 9575.000
Iteration 1:
   global_best: 9575.000   iteration_best: 10765.000
Iteration 2:
   global_best: 9482.000   iteration_best: 9482.000
Iteration 3:
   global_best: 9482.000   iteration_best: 10256.000
Iteration 4:
   global_best: 9269.000   iteration_best: 9269.000
Iteration 5:
   global_best: 8446.000   iteration_best: 8446.000
Iteration 6:
   global_best: 8083.000   iteration_best: 8083.000
Iteration 7:
   global_best: 8083.000   iteration_best: 8083.000
Iteration 8:
   global_best: 8083.000   iteration_best: 8232.000
Iteration 9:
   global_best: 8083.000   iteration_best: 8083.000
Iteration 10:
   global_best: 7755.000   iteration_best: 7755.000
Iteration 11:
   global_best: 7755.000   iteration_best: 7888.000
Iteration 12:
   global_best: 7698.000   iteration_best: 7698.000
Iteration 13:
   global_best: 7578.000   iteration_best: 7578.000
Iteration 14:
   global_best: 7578.000   iteration_best: 8597.000
Iteration 15:
   global_best: 7578.000   iteration_best: 8155.000
Iteration 16:
   global_best: 7578.000   iteration_best: 8160.000
Iteration 17:
   global_best: 7578.000   iteration_best: 7578.000
Iteration 18:
   global_best: 7578.000   iteration_best: 7716.000
Iteration 19:
   global_best: 7578.000   iteration_best: 7658.000
Iteration 20:
   global_best: 7578.000   iteration_best: 8503.000
Iteration 21:
   global_best: 7310.000   iteration_best: 7310.000
Iteration 22:
   global_best: 7310.000   iteration_best: 7618.000
Iteration 23:
   global_best: 7310.000   iteration_best: 7310.000
Iteration 24:
   global_best: 7310.000   iteration_best: 7310.000
Iteration 25:
   global_best: 7310.000   iteration_best: 7310.000
Iteration 26:
   global_best: 7310.000   iteration_best: 8187.000
Iteration 27:
   global_best: 6652.000   iteration_best: 6652.000
Iteration 28:
   global_best: 6652.000   iteration_best: 7433.000
Iteration 29:
   global_best: 6652.000   iteration_best: 7391.000
Iteration 30:
   global_best: 6652.000   iteration_best: 6796.000
Iteration 31:
   global_best: 6652.000   iteration_best: 6652.000
Iteration 32:
   global_best: 6652.000   iteration_best: 6652.000
Iteration 33:
   global_best: 6332.000   iteration_best: 6332.000
Iteration 34:
   global_best: 6332.000   iteration_best: 6332.000
Iteration 35:
   global_best: 6332.000   iteration_best: 7056.000
Iteration 36:
   global_best: 6332.000   iteration_best: 6574.000
Iteration 37:
   global_best: 6329.000   iteration_best: 6329.000
Iteration 38:
   global_best: 6329.000   iteration_best: 6652.000
Iteration 39:
   global_best: 6329.000   iteration_best: 6897.000
Iteration 40:
   global_best: 6329.000   iteration_best: 6329.000
Iteration 41:
   global_best: 6323.000   iteration_best: 6323.000
Iteration 42:
   global_best: 6323.000   iteration_best: 6323.000
Iteration 43:
   global_best: 6245.000   iteration_best: 6245.000
Iteration 44:
   global_best: 6245.000   iteration_best: 6323.000
Iteration 45:
   global_best: 6245.000   iteration_best: 6323.000
Iteration 46:
   global_best: 6245.000   iteration_best: 6245.000
Iteration 47:
   global_best: 6245.000   iteration_best: 6751.000
Iteration 48:
   global_best: 6245.000   iteration_best: 6525.000
Iteration 49:
   global_best: 6245.000   iteration_best: 6245.000

Iteration completed
==========================
Exit code 0: Algortihm reached the maximum limit of 50 iterations
Elapsed time 0.138
50 iterations
Best selection: [7, 0, 2, 9, 3, 10, 5, 4, 11, 1, 8, 12, 6]
Best evaluation: 6245.0

import functools
from psopt import Permutation


def main():

    def get_route_cost(x, initial_cost, distance_matrix):

        # define initial route cost
        route_cost = initial_cost

        for i in range(len(x) - 1):
            route_cost += distance_matrix[x[i]][x[i + 1]]

        return route_cost

    # define distances between 13 cities
    distance_matrix = [
        [0, 2451, 713, 1018, 1631, 1374, 2408, 213, 2571, 875, 1420, 2145, 1972],
        [2451, 0, 1745, 1524, 831, 1240, 959, 2596, 403, 1589, 1374, 357, 579],
        [713, 1745, 0, 355, 920, 803, 1737, 851, 1858, 262, 940, 1453, 1260],
        [1018, 1524, 355, 0, 700, 862, 1395, 1123, 1584, 466, 1056, 1280, 987],
        [1631, 831, 920, 700, 0, 663, 1021, 1769, 949, 796, 879, 586, 371],
        [1374, 1240, 803, 862, 663, 0, 1681, 1551, 1765, 547, 225, 887, 999],
        [2408, 959, 1737, 1395, 1021, 1681, 0, 2493, 678, 1724, 1891, 1114, 701],
        [213, 2596, 851, 1123, 1769, 1551, 2493, 0, 2699, 1038, 1605, 2300, 2099],
        [2571, 403, 1858, 1584, 949, 1765, 678, 2699, 0, 1744, 1645, 653, 600],
        [875, 1589, 262, 466, 796, 547, 1724, 1038, 1744, 0, 679, 1272, 1162],
        [1420, 1374, 940, 1056, 879, 225, 1891, 1605, 1645, 679, 0, 1017, 1200],
        [2145, 357, 1453, 1280, 586, 887, 1114, 2300, 653, 1272, 1017, 0, 504],
        [1972, 579, 1260, 987, 371, 999, 701, 2099, 600, 1162, 1200, 504, 0],
    ]

    obj_func = functools.partial(
        get_route_cost, initial_cost=0, distance_matrix=distance_matrix
    )
    candidates = list(range(len(distance_matrix)))

    # instantiate the optimizer
    opt = Permutation(obj_func, candidates)

    # minimize the obj function
    solution = opt.minimize(
        verbose=1, max_iter=50, population=15, early_stop=25, seed=0
    )

    solution.history.plot("global_best")


if __name__ == "__main__":
    main()
